Different types of roofs

November 15, 2021 | 5 Comments


I’ve been obsessed with roofs in recent weeks during the current Group Run-through of my Buildings course.

I’ve realised more and more, how important they are to most sketches of architecture (if they are visible). During last week’s Buildings Livestream I was focusing on drawing the horizontal edges of various roof forms while I was reviewing work from the classroom.

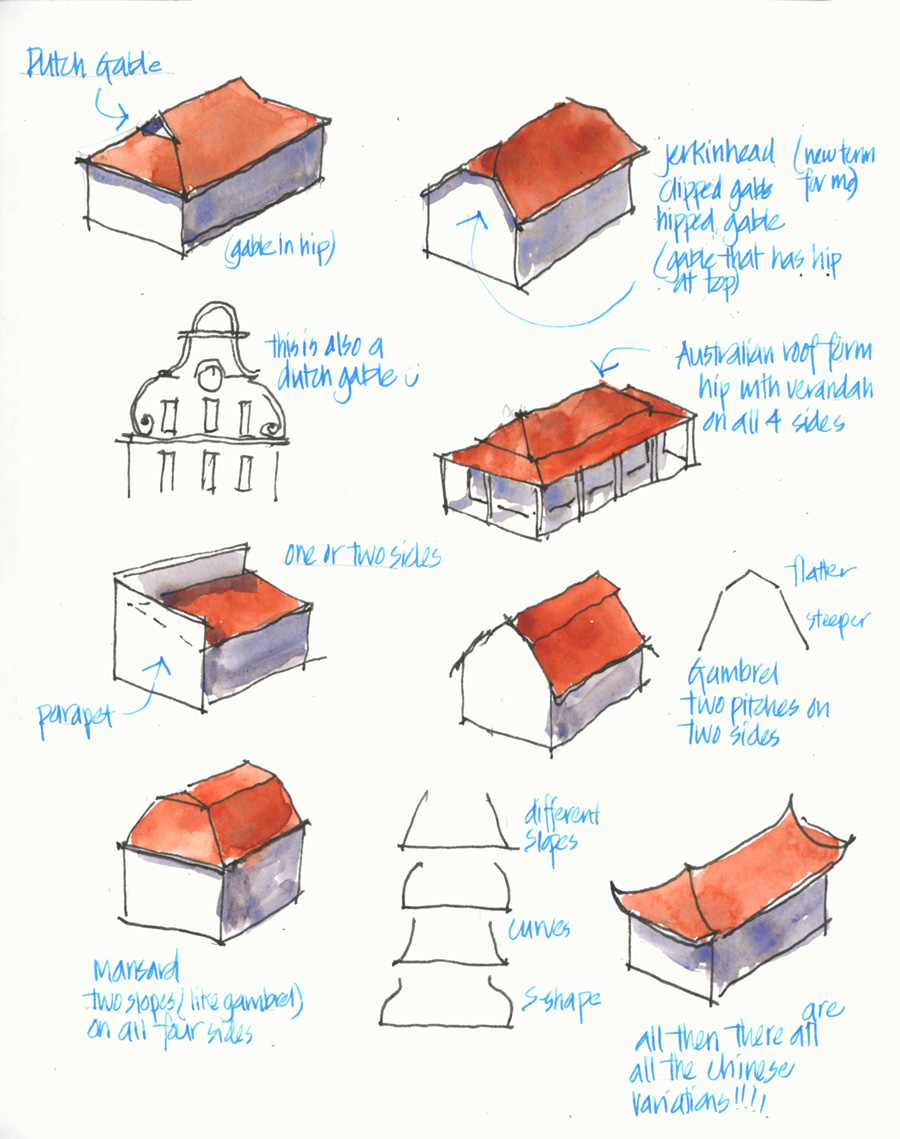

I’ve been thinking of doing a page like this for a long time but now is the perfect time to actually create it. It was a lot of fun to do and I’m sure that there are a few I missed.


Some of these roofs such as gambrel, jerkinhead, mansard and saltbox are not common in Australia. BTW jerkinhead is a term I learnt last week during the livestream (thanks Gerron).

I would also like to do some more research into Chinese roof forms and get to them better.

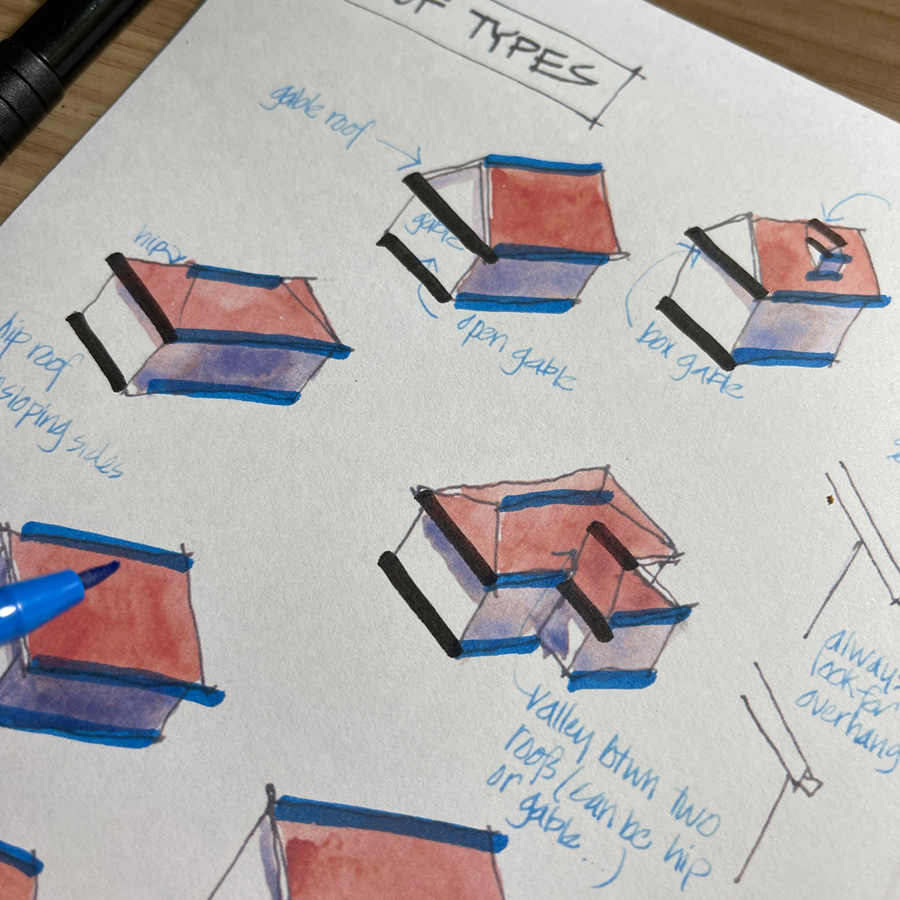

For the Buildings group I’ve also made a special version of this page with ‘left and right fans’ marked up. So if you are doing the Group Run-through you will know what I’m talking about. 🙂 And I’ll be sharing it this week during the livestream and in the classroom.

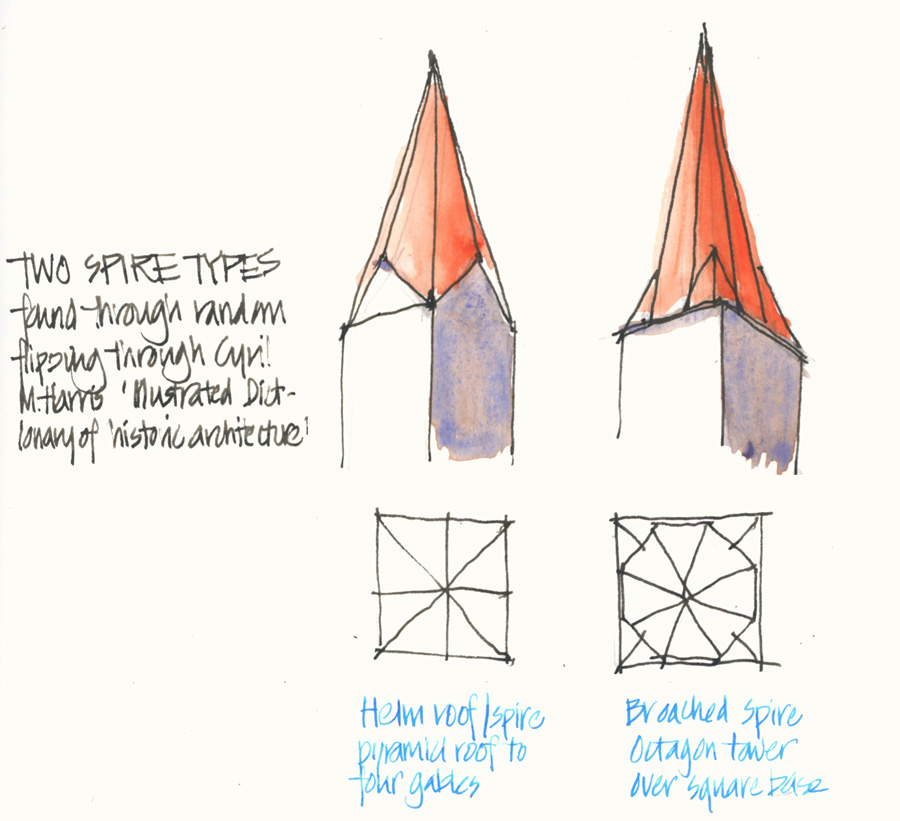

Finally, a few weeks ago while looking through my Architectural Dictionary I also discovered the terms for two types of roofs for spires. I’ve sketched broached spires a number of times (eg. St James church in Sydney) but a helm spire (or roof) is less common here in Sydney. Of course, I’ll be on the lookout for them now. 🙂
